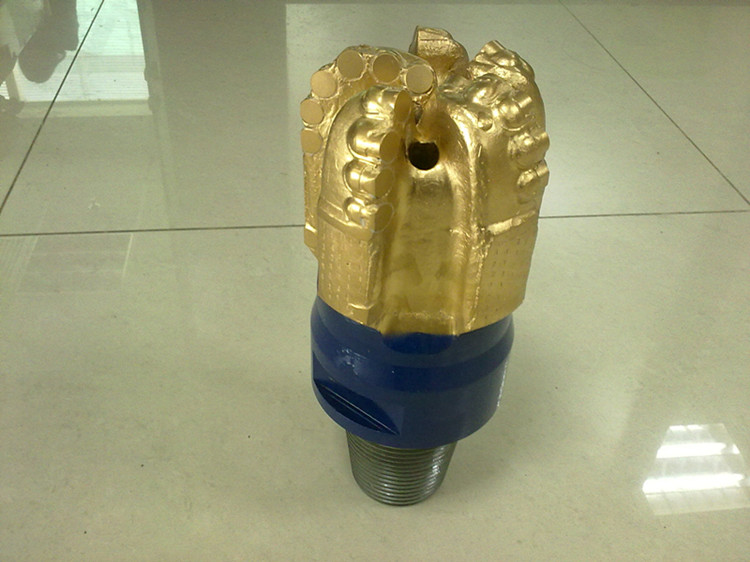

The PDC bits have steel body and matrix body for choose, alongwith high quality PDC cutters of 4 blades, 5 blades, 6 blades and 7 blades in longer drilling life.

Tungsten carbide matrix PDC processes high wear resistance and impact resistance.

Parabolic crown profile and maximizes junk slot area can clean bit better, and prolong the bit working life.

Applying hydraulics balance design, 5 renewal nozzles and reasonable nozzles locating angle can gain ideal fluid field in well bottom, fully clean and cool cutter, and prolong the cutter working life.

Non-symmetry blade arrangement enhances drilling well balance.Optimization for cutter shape, slant angle, cutter numbers prolong the cutter working life in combination with high quality PDC cutters and improve ROP and drilling efficiency.

It can be used on rotary or down hole motor. High HIS is recommended.

The Main Type of PDC Bits:

The Other type and size please contact with us.

Recommended Drilling Parameters and Formation of The Above PDC Bits:

Please contact with us for the other's.
